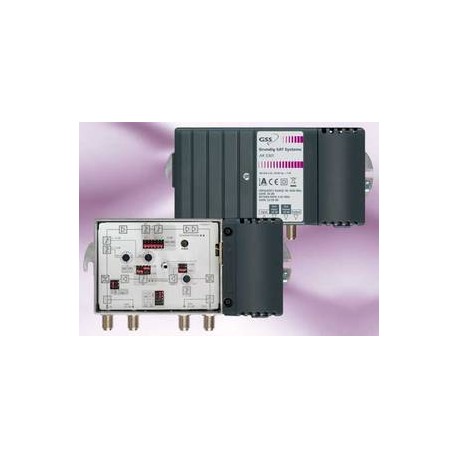

AR 5301
Amplifier, gain 30 dB, frequency range 85 - 1006 MHz, gain return-path 22/28 dB, return path 4 - 65 MHz, attenuation adjustable0 - 15 dB, equalization (rotary switch) 0 - 15 dB.
|
AR 5301 |
|
|
Forward range (switchable) |
47 - 1006 MHz 85 - 1006 MHz |
|
Return-path range (switchable) |
5 - 65 MHz |
|
Gain 1006 MHz |
30 dB |
|
Attenuation input (rotary control) |
0 - 15 dB |
|
Distortion - 1-dB steps (rotary control) |
0 - 15 dB |
|
Interstage attenuation (jumper) |
0 / 6 dB |
|
Interstage slope (jumper) |
0 / 3 / 7 / 10 dB |
|
Gain 60 MHz (jumper) |
22 / 28 dB |
|
Attenuation input (rotary control) |
0 - 15 dB |
|
Interstage distortion/slope (jumper) |
0 / 3 / 6 / 9 dB |
|
47 - 1006 MHz |
±1.0 dB |
|
5 - 65 MHz (return-path) |
±1.0 dB |
|
Forward (RC "on") |
6.5 dB |
|
Return-path (RC "active") |
5.0 dB |
|
Forward |
>18 dB |
|
Return-path |
>18 dB |
|
CSO (42 chan. 862 MHz) Slope 0/7 dB |
103 / 105 dBµV |
|
CTB (42 chan. 862 MHz) Slope 0/7 dB |
103 / 105 dBµV |
|
16-QAM (KDG1TS140 - C) |
120 dBµV |
|
16-QAM (KDG1TS140 - D) |
- |
|
Input / output |
F connectors |
|
Measuring connector input (bi-directional) |
-20 dB |
|
Measuring connector output (bi-directional) |
-20 dB |
|
Mains supply (50 / 60 Hz) |
190 - 264 V AC |
|
Power consumption |
<7 W |
|
Operation temperature range |
-25 to +55°C |
|
Dimensions (W x H x D) |
170 x 90 x 65 mm |
|
Weight |
0.75 kg |
