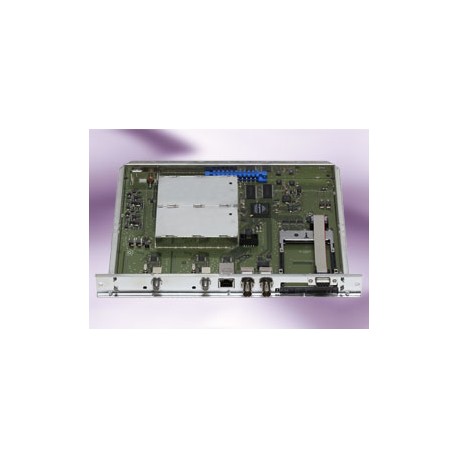

HDTV 1000 T
Digital Twin Cassette (DVB-S2 - COFDM), DiSEqC 1.1, with integrated TPS module and 1 Common Interface (NIT conversion for up to32 transponders, Stuffing, Filtering of transport streams and bandwidth optimized transmodualtion, adjusting of an Operator ID) for the transmodulation of 2 transponders, 1 ASI input and 1 ASI output,LAN interface, 2 output channels in the range of 42 - 860 MHz
|
|
HDTV 1000 T |
|---|---|
|
No. of inputs |
2 |
|
No. of converted transponders |
2 |
|
Input frequency range |
950 – 2150 MHz |
|
DVB-S Modes (QPSK) |
1/2, 2/3, 3/4, 5/6, 7/8 |
|
DVB-S2 Modes (QPSK) |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|
DVB-S2 Modes (8PSK) |
3/5, 2/3, 3/4, 5/6, 8/9, 9/10 |
|
Symbol Rate DVB-S (QPSK) |
1 – 45 MSymb/s |
|
Symbol Rate DVB-S2 (QPSK) |
1 – 45 MSymb/s |
|
Symbol Rate DVB-S2 (8PSK) |
1 – 45 MSymb/s |
|
No. of carriers |
2 k, 4 k and 8 k |
|
Modulation Scheme |
QPSK, 16-QAM or 64-QAM |
|
Guard Interval |
1/4, 1/8, 1/16 and 1/32 |
|
ASI in / ASI out interfaces |
• |
|
Ethernet interface |
• |
|
Common Interface |
• |
|
TPS Module |
• |
|
Software download |
via RS-232 |
|
Output frequency range |
42 - 860 MHz
|
