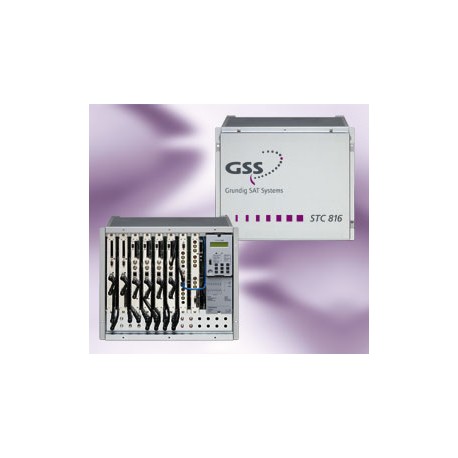

STC 816
Head-End Station Unit for up to 8 single or twin cassettes, capable for adjacent channels, incl.2 input distribution units (each with 1 input with 6 outputs and 1 input with 4 outputs), incl. hybrid amplifier (max. 93 dBµV), incl. operating and power supply unit, without cassettes; suitable for wall mounting and mounting in 19" rack
|
HEAD-END STATION |
STC 816 |
|---|---|
|
No. of slots for cassettes |
8 |
|
Delivery status |
unloaded |
|
Fit for adjacent channels |
yes |
|
Input/output impedance/Programming |
75 Ω/Integrated Control Unit/ BE-REMOTE |
|
S/N weighted |
55 dB |
|
Input data |
|
|
Input frequency range |
47 - 862 MHz, 950 - 2150 MHz |
|
Input distributor/Input level |
2 pieces with 4 and 6 outputs each |
|
Power feed for LNB |
18 V/1000 mA |
|
Output data |
|
|
RF output level/RF level adjusting |
max. 93 dBµV / - 31 dB (electronical) |
|
Output frequency range |
47 - 862 MHz |
|
Power supply |
|
|
Mains voltage / Frequency |
195 - 260 V AC / 50/60 Hz |
|
Power consumptions |
|
|
equipped with 8 x HDM 2380 P CI |
97 W |
|
equipped with 8 x HDTV 1000 ASI LAN |
90 W |
|
Weight (fully loaded) |
approx. 20 kg |
|
Dimensions (W x H x D) |
approx. 48.3 (19") x 39.7 (9 HU) x 30.2 cm
|
