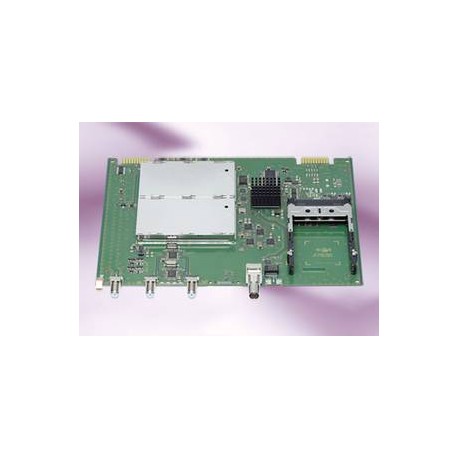

HDMA 784 T ASI
Digital Quadruple Module (DVB-S2 - COFDM) with modulator and integrated Double Common Interface, 1 ASI input, 2 inputs and 4 tuners (16APSK and 32APSK), NIT conversion for up to 32 transponders, Stuffing, Filtering of transport streams and bandwidth optimized transmodulation, adjusting of an Operator ID, for the transmodulation of 4 transponders, 4 output channels in the range 42 - 868 MHz.
|
|
HDMA 784 T ASI |
|---|---|
|
No. of inputs |
2 |
|
No. of converted transponders |
4 |
|
Input frequency range |
910 – 2150 MHz |
|
Input Symbol Rate DVB-S (QPSK) |
1 – 45 MSymb/s |
|
Input Symbol Rate DVB-S2 (QPSK) |
4.5 - 45 MSymb/s |
|
Input Symbol Rate DVB-S2 (8PSK) |
4.5 - 45 MSymb/s |
|
Input Symbol Rate DVB-S2 (16APSK) |
4.5 - 39 MSymb/s |
|
Input Symbol Rate DVB-S2 (32APSK) |
4.5 - 32 MSymb/s |
|
Modulation Scheme |
QPSK, QAM 16, QAM 64 |
|
No. of carriers |
2 k |
|
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
|
ASI input |
• |
|
Software download |
via RS-232 |
|
Output frequency range |
42 - 860 MHz
|
